Q: How did you get a radio station to play your music?

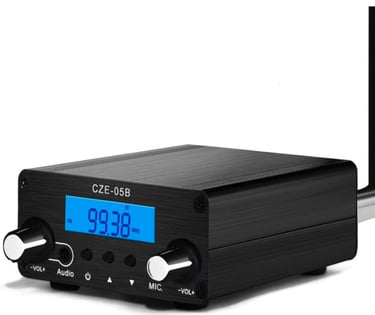

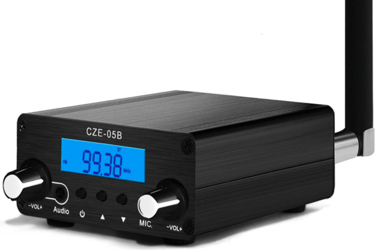

A: We use a low-power FM radio transmitter, not a commercial radio station. They are often used by drive-in movie theaters/events and by churches to broadcast services to their parking lots (especially during COVID-19). Ours has a practical range of a couple of blocks.

Q: Why don’t you stream your music? Isn’t FM radio a bit old-school?
A: Because of Internet, cellular data lag, and other networking and processing delays, streamed audio isn’t actually “live”, and is delayed by a variable number of seconds. It can be delayed by 1-5 seconds or more, and there is no consistency with that timing. It is just not possible to stream a live performance like ours because of this.

Q: What’s a pixel?
A: While there are other definitions, in the case of a light show like ours- a pixel is a small light bulb that contains 3 tiny LEDs (Light Emitting Diodes). The three LEDs are three different colors, Red, Green, and Blue, which are often just referred to as “RGB”. By varying the brightness of each LED- a pixel can (theoretically) display over 16 million colors. These colors can be changed dozens of times every second, allowing us to use thousands of them to display special effects synchronized to music.

Q: Don’t you have a huge electric bill doing this?
A: No, we don’t at all. In 2022 our light show used a maximum of about 800W when most of the LEDs are lit up brightly. The controller computers and other electronics use very little power, and the pixels only use power when they are actually lit up. The projector we use for displaying video and “virtual matrix” elements uses more power than all of the LED pixels combined.

Q: How do you do make the lights play to the music?
A: It’s pretty involved, but in a nutshell: We use special software called xLights to digitize all of our display elements (decorations) on a 3D plot. We can then load music into it and map different elements of the music, like beat, melody, different instruments, and lyrics, to special effects on those display elements. Once this programming is completed, the “Sequence” is saved. In many cases- we buy sequences from vendors and then adapt them to our own show, which saves us countless hours of programming time.

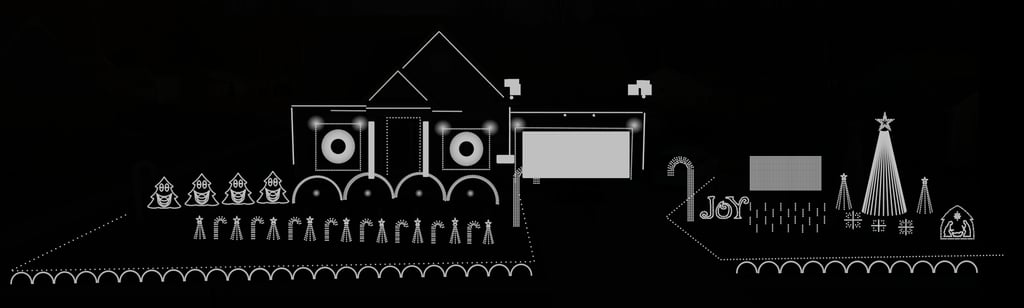

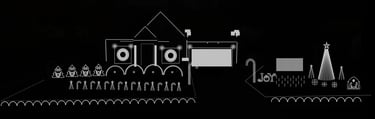

A computer rendering of our 2022 layout

Once the sequences are done- they are uploaded to the computer and controller network that actually controls all of the lights. These all run software called FalconPlayer or FPP. A Show Runner computer manages the music, sequence library and playlists, and has a scheduling system. It coordinates with the other controllers to make all the lights blink to the music when they are supposed to.

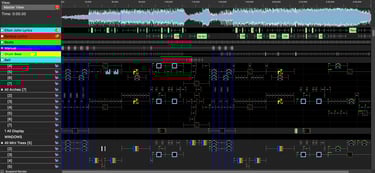

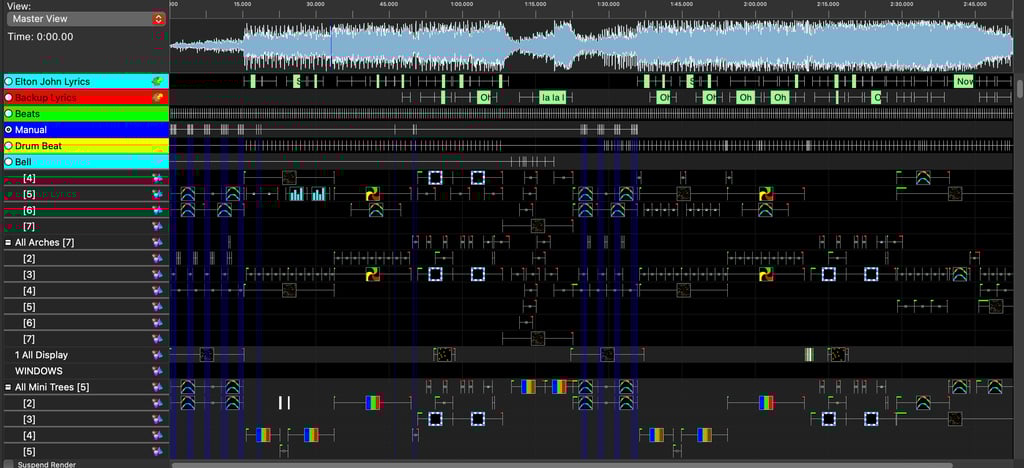

A Sequence in xLights

Q: Don’t you upset your neighbors doing this?
A: Well, so far we don’t think so. We talk to our neighbors next door and across the street and they love the show and have been very supportive.

The biggest thing that upsets folks in the neighborhood isn’t the lights themselves, it’s cars stopping in the middle of the street or blocking their driveways, or folks with their windows rolled down blaring the music. Please don’t do this. Also, when you stop, please turn your headlights off so they aren’t shining in windows or blinding other people trying to drive by or watch the show.

Q: Have you won any awards? Have you seen “The Great Christmas Light Fight?”
A: No and yes. These always seem to go together. First and foremost though- we aren’t in this for awards or competition. We are in this for our own enjoyment, and to provide something that we hope our community enjoys too. We really have no interest in competition shows like The Great Christmas Light Fight. What really makes us happy is seeing more people in our neighborhood and community putting up Christmas lights and getting into the holiday spirit. For a long time- people just weren’t decorating anymore, and there has been a surge over the last few years that we are happy to be a part of.

Q: Can I just buy a light show like this at Menards, Home Depot, Lowes, or Amazon?
A: No. (!)
There are no “plug-and-play” light shows like this that you can just buy, set up, and walk away from. Our show is made up of DIY and commercially-sourced props/decorations, dozens of computer, network, and controller components, hundreds of feet of power, network, and data cable, and of course- thousands of individually-addressed pixel nodes and matrix panels. It takes both of us hundreds of hours each year to prepare and set up, and it requires daily maintenance to keep running during the season. Each musical light sequence can take many hours or even days to program.

We love doing it, but have also seen a lot of people jump into this hobby and quickly get frustrated and give up, after spending a LOT of time and money.

You can buy systems from companies like Light-O-Rama. They still require a significant amount of work and can be very expensive. They used to only deal in “AC” systems, allowing you to turn conventional Christmas lights on and off to music, but more-recently started selling RGB pixel systems. Light-O-Rama’s gear is frequently used for commercial installations.
If you want more information about running a show like this, Wolf’s tech blog at https://lunardenlights.com has a lot more information, including resources and terminology links. A background in electronics and computers, or an aptitude and strong desire to learn, is a must!

Q: How much did all of this cost?
A: Too Much, We have done a pretty good job of tracking our costs, and its a lot! But it’s a hobby after-all! I will say that if you really want to do this, you can count on spending more than $2000-4000/year as you grow your show, and hundreds of dollars every year just on maintenance. Of course it gets significantly more expensive if you want to buy pre-built everything and have someone else do most of the work for you, and costs much less if you DIY most of it.

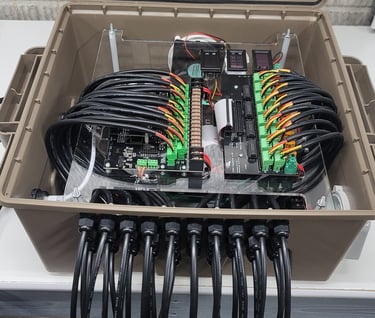

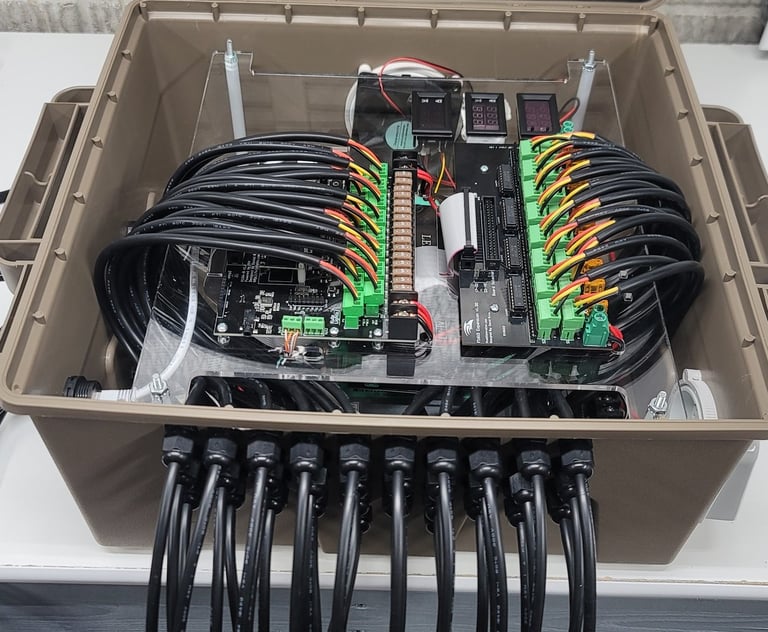

One of our controller boxes.

Q: Is there someone we can just pay to do this for us? How about you?
A: We have “day jobs” and just doing our own show takes up a significant amount of our spare time throughout the year.

There are some folks who have made a business out of doing this and do full installs, mostly for commercial and municipal projects. They are in larger cities though. Unfortunately as far as we know there is nobody in this area that does them.

Some local landscaping companies do some really outstanding conventional Christmas light installs, which are a good option if you can’t devote time to a pixel light show. As far as we are concerned- any lights are better than none!

MORE QUESTIONS?

Please feel free to ask on our social media accounts, or if you see us out working on or watching our show.
